Lithium-Ion Battery Charging Cabinet – Specifications
Specifications
This lithium-ion battery charging cabinet is designed to support safer indoor charging and organized battery storage for e-bike batteries and other lithium-powered devices. Specifications below are provided to help you confirm fit, electrical compatibility, and installation requirements before purchase.
1. Electrical & Power Requirements
- Input Voltage: 120V AC, 60Hz (US version)
- Max. Power : 2200W
- Max. Current: 20A
- Integrated Power Strip: 3-outlet grounded power strip with overload and over-voltage protection
- Charging Support: Suitable for multiple standard lithium-ion battery chargers

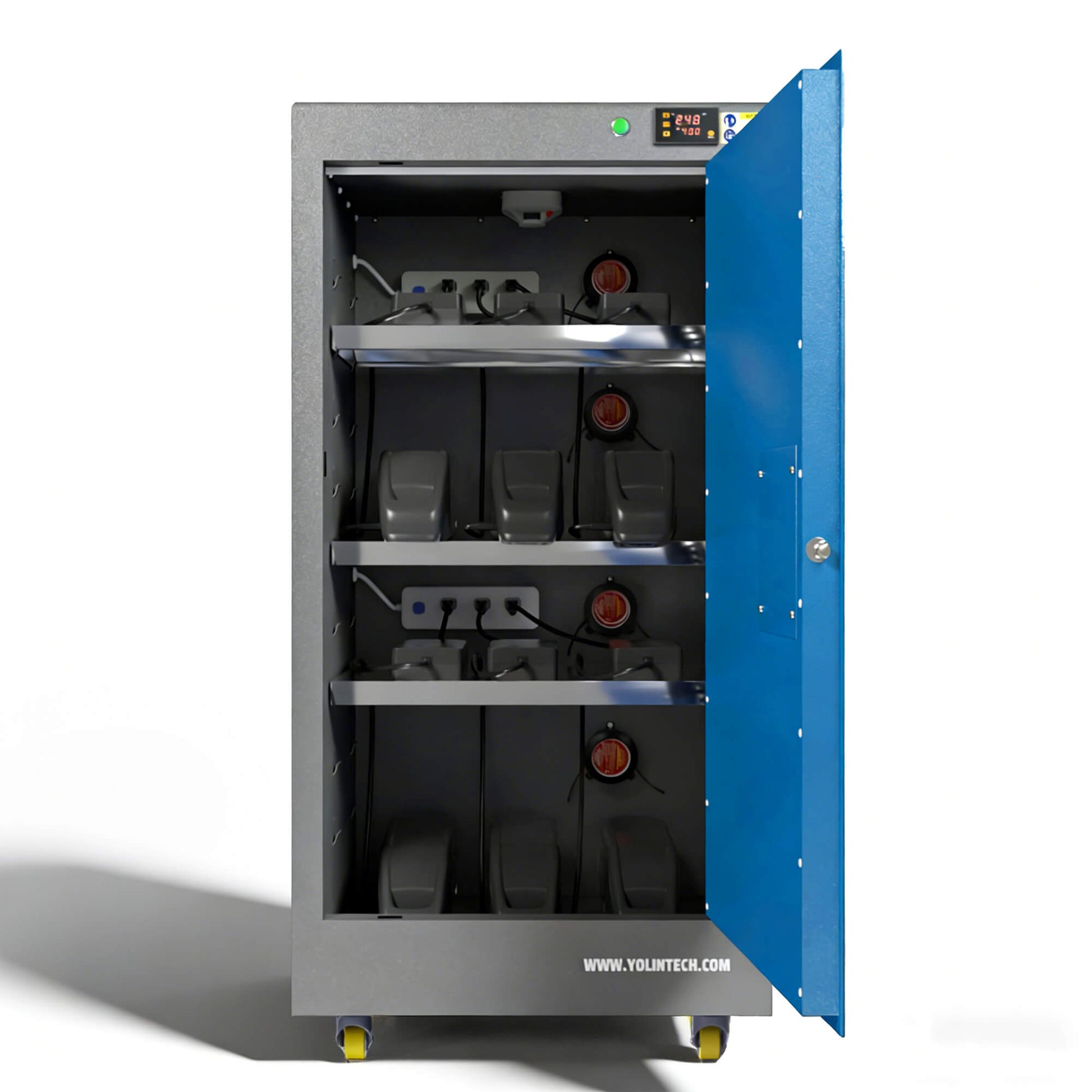

2. Charging Capacity & Interior Fit
- Recommended Battery Type: Lithium-ion battery packs (commonly used in power tools, drones, and e-bikes)
-
Typical Charging Quantity:
- Urban model: 1–3 battery packs (compact setup)
- Workshop model: 1–6 battery packs (extended setup)
- Shelf Design: Adjustable steel shelve designed to promote airflow during charging.
- Load Rating: Designed for evenly distributed battery and charger weight
Battery Cabinet Specifications
All dimensions are shown in inches (W × D × H).
| Specification | Urban Model | Workshop Model |
|---|---|---|
| Exterior Dimensions | 18.11" W × 20.47" D × 24.41" H |
23.23" W × 18.11" D × 44.09" H |
| Interior Usable Dimensions |
13.78" W × 14.96" D × 14.96" H |
20.08" W × 14.96" D × 37.01" H |
| Shipping Dimensions | 18.11" W × 20.47" D × 24.41" H |
25.59" W × 20.47" D × 46.06" H |
| Net / Gross Weight | 46.3 lbs (21 kg) / 52.9 lbs (24 kg) |
92.6 lbs (42 kg) / 103.6 lbs (47 kg) |
| Shelf Payload | 66.13 lbs (30 kg) |
66.13 lbs (30 kg) |
| Total Payload | 198.41 lbs (90 kg) |
286.60 lbs (130 kg) |
3. Ventilation & Thermal Management
- Ventilation Type: Active cooling with high-efficiency fan
- Fan Operation: Automatic temperature-triggered activation
- Airflow Design: Supports heat dissipation during continuous or high-load charging
- Purpose: Helps reduce heat buildup and maintain a more stable charging environment
4. Detection, Alarm & Fire Response
- Smoke Detection: Integrated high-sensitivity smoke sensor
- Alarm Type: Audible early-warning alarm
- Automatic Power Cutoff: Cuts power during fault, leakage, or abnormal conditions
- Fire Suppression: Built-in heat-triggered aerosol suppression module
- Suppression Characteristics: Automatic activation
Fire suppression is designed to assist containment and response. Always follow safe charging practices.
5. Construction & Materials
- Steel Construction: 18-gauge industrial-grade steel

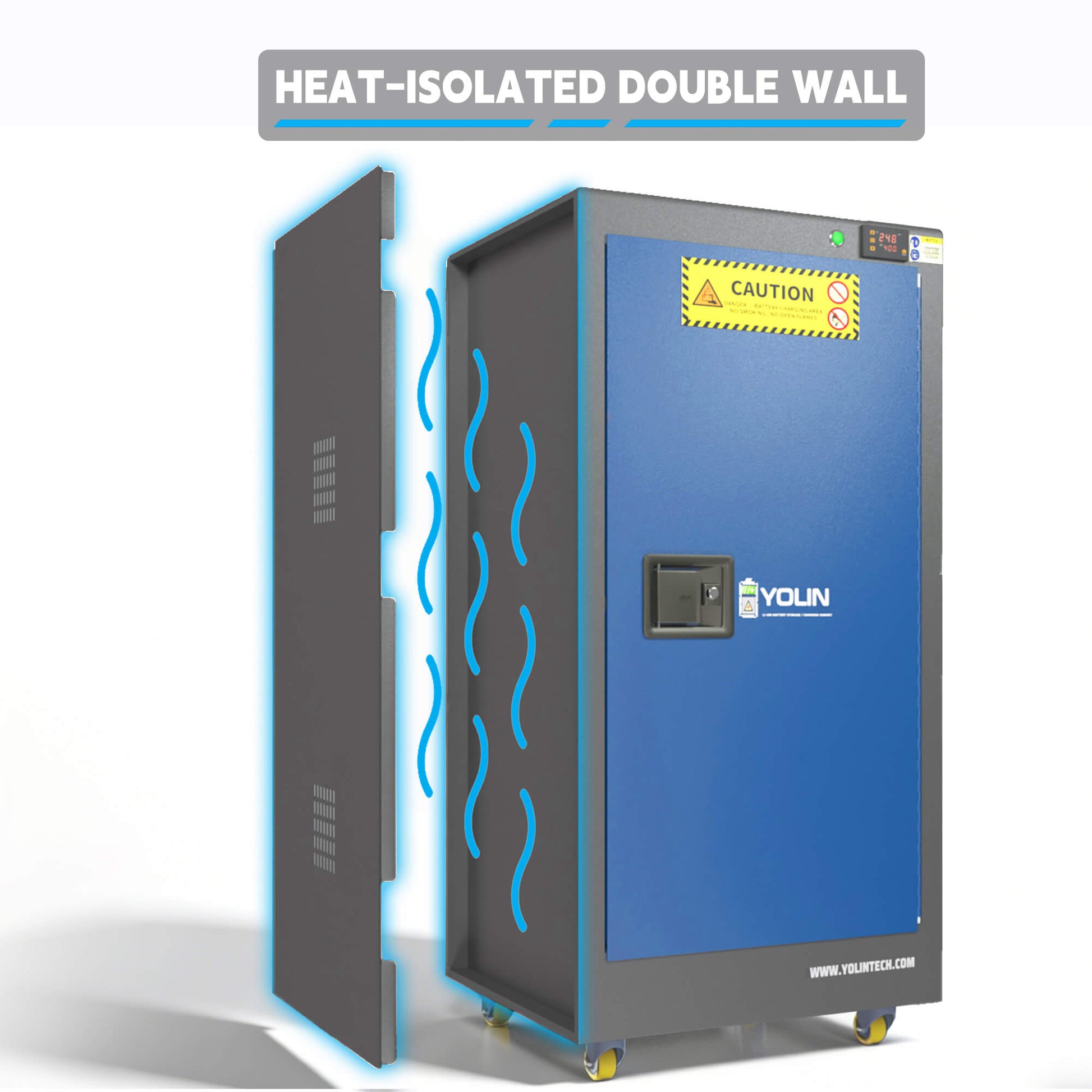

- Wall Design: Double-wall construction with air gap
- Finish: Durable powder-coated surface
- Door Hinges: Full-length heavy-duty piano hinges
-
Door Type: Manual Close
6. Grounding, Power & Cooling Components
- Grounding Connection: Dedicated grounding point to help reduce static discharge risk
- Cooling Fan: Continuous-duty fan designed for charging environments
- Internal Power Layout: Organized cable routing for chargers and adapters
7. Security, Mobility & Access
- Locking System: Flush mounted door handle – locking at three positions with two keys
- Wheel: Heavy-duty 360° Swivel Casters (2 Locking, 2 Non-locking)
- Wheel Diameter: 50mm
- Wheel Load Capacity: 50kg per wheel
- Mobility: Designed for repositioning in apartments, garages, and workshops
- Door Opening: Wide-opening doors for easy battery handling
8. Installation & Placement Guidelines

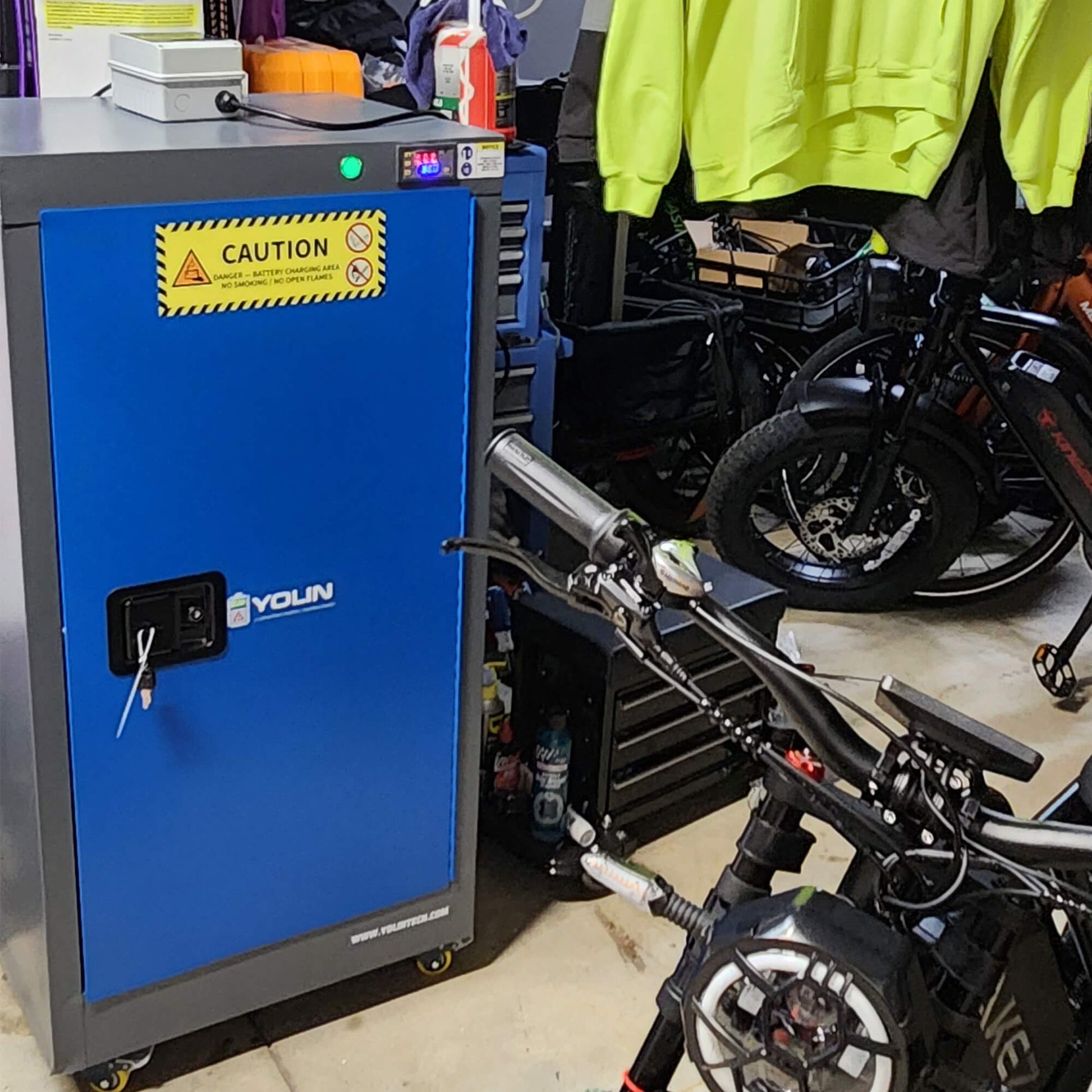

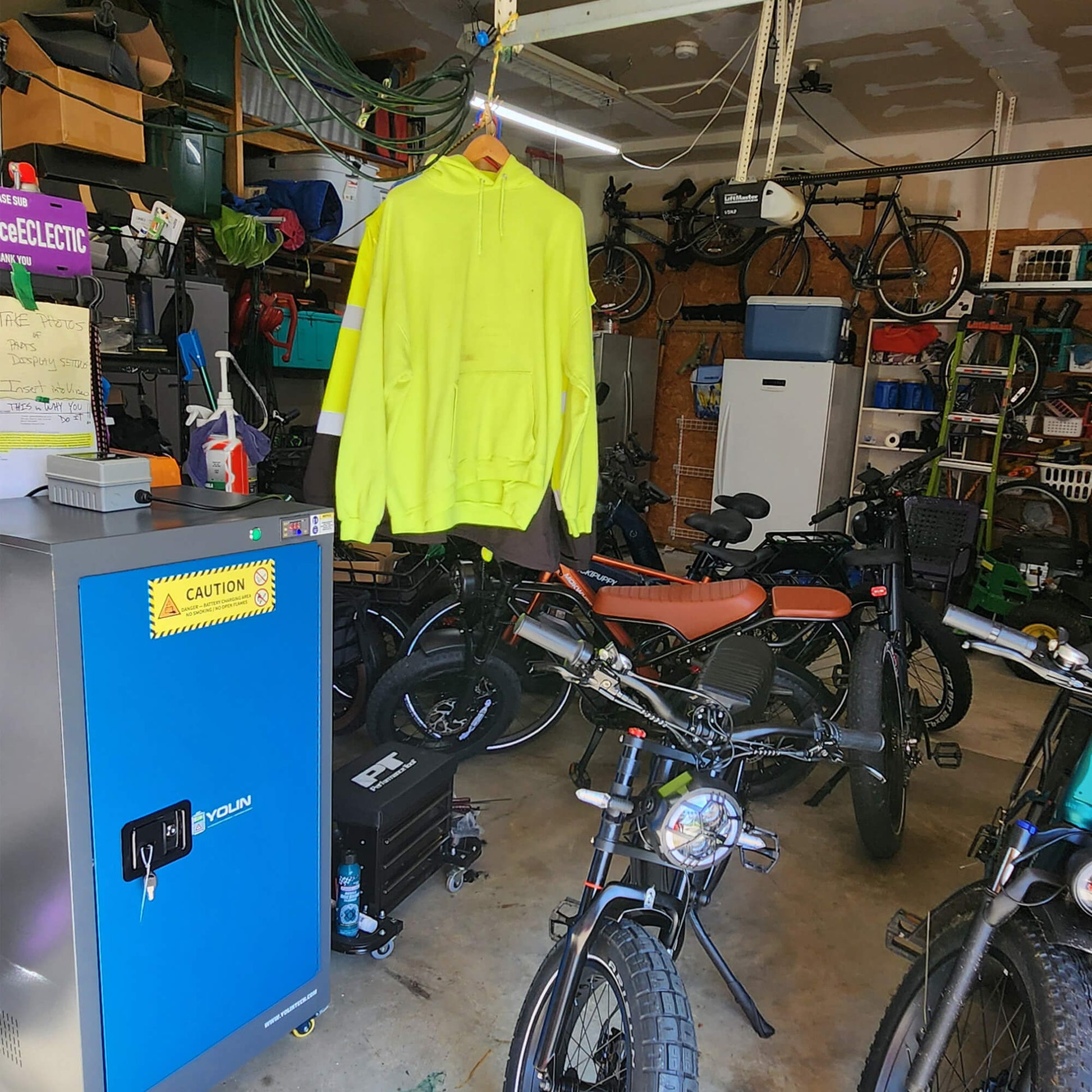

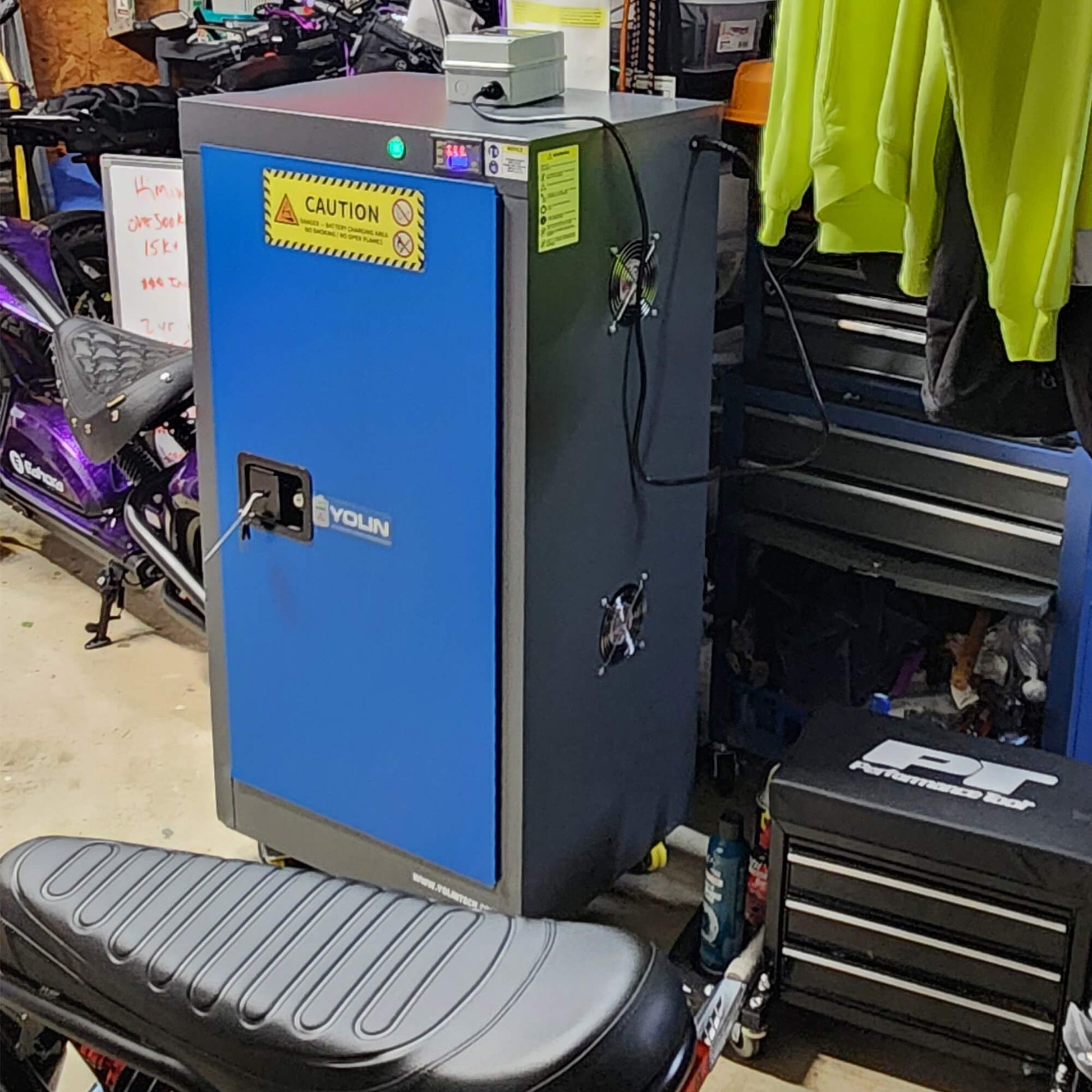

- Intended Use: Indoor environments (apartments, garages, workshops)
- Placement: Flat, stable surface with ventilation clearance
- Recommended Clearance: Allow at least 100mm (4 inches) of space at the rear and sides for ventilation.
- Not Recommended: Outdoor exposure, wet environments, damaged or swollen batteries
9. What’s Included
- Battery charging cabinet (fully assembled)
- Power Cord with Built-in GFCI Switch
- Smoke Alarm (Battery Included)
- Keys
- Casters
- Grounding Wire
10. Warranty & Support
- Warranty: 5-year warranty on structural components and a 1-year warranty on serviceable parts.
- Replacement Parts: Available for key safety components
- Support: Technical assistance available before and after purchase
- Approval: EN 14470-1 Type 90, EN 14470-2, and EN 1363-1, CE, RoHS
Before You Buy – Fit Check (Recommended)
To ensure compatibility and reduce delays, please confirm the following before ordering:
- Battery type and approximate dimensions
- Number of batteries charged simultaneously
- Charger wattage and plug type
- Installation environment (apartment / garage / workshop)
If unsure, contact our support team with photos or details and we’ll help confirm the right model.

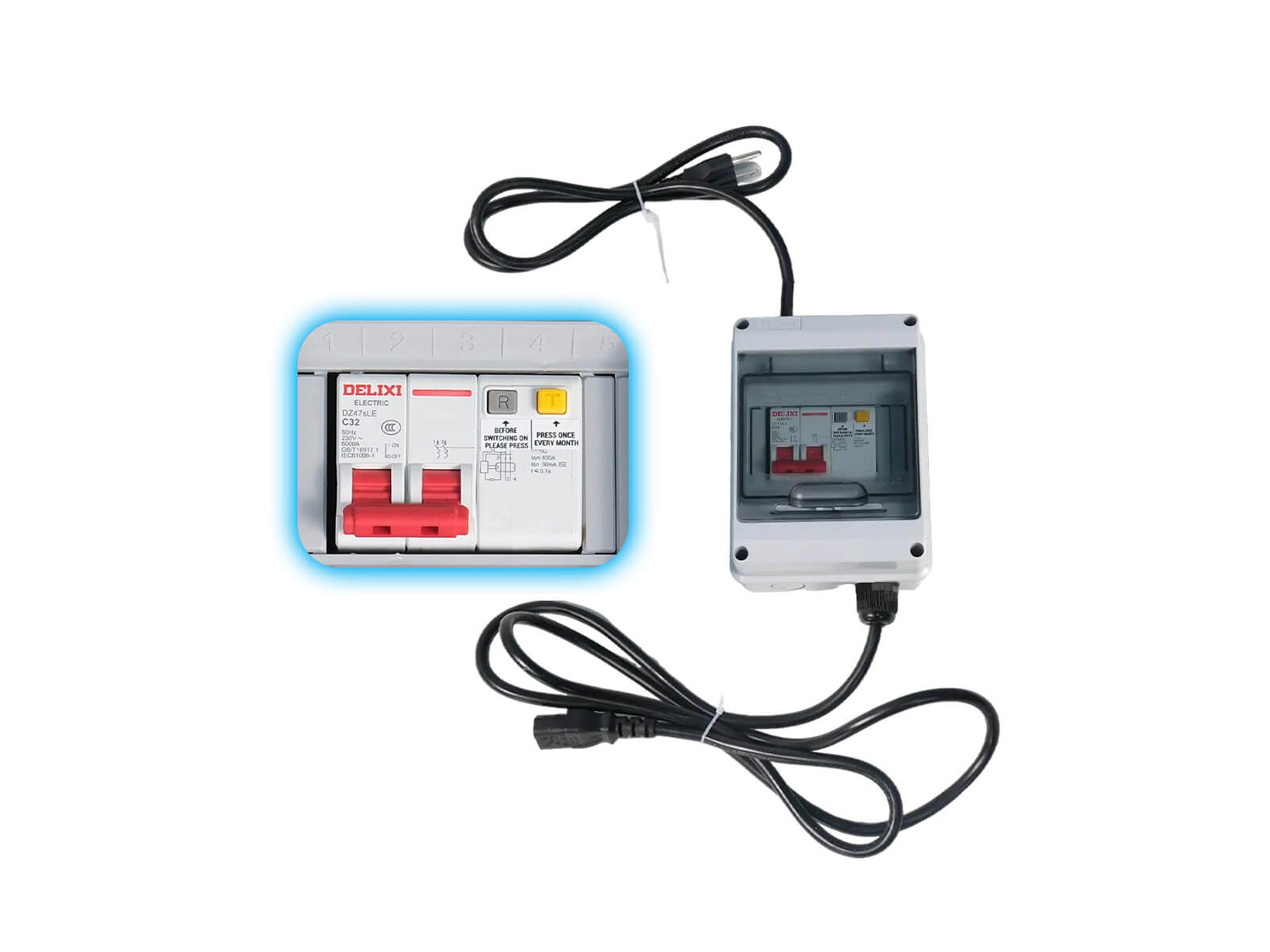

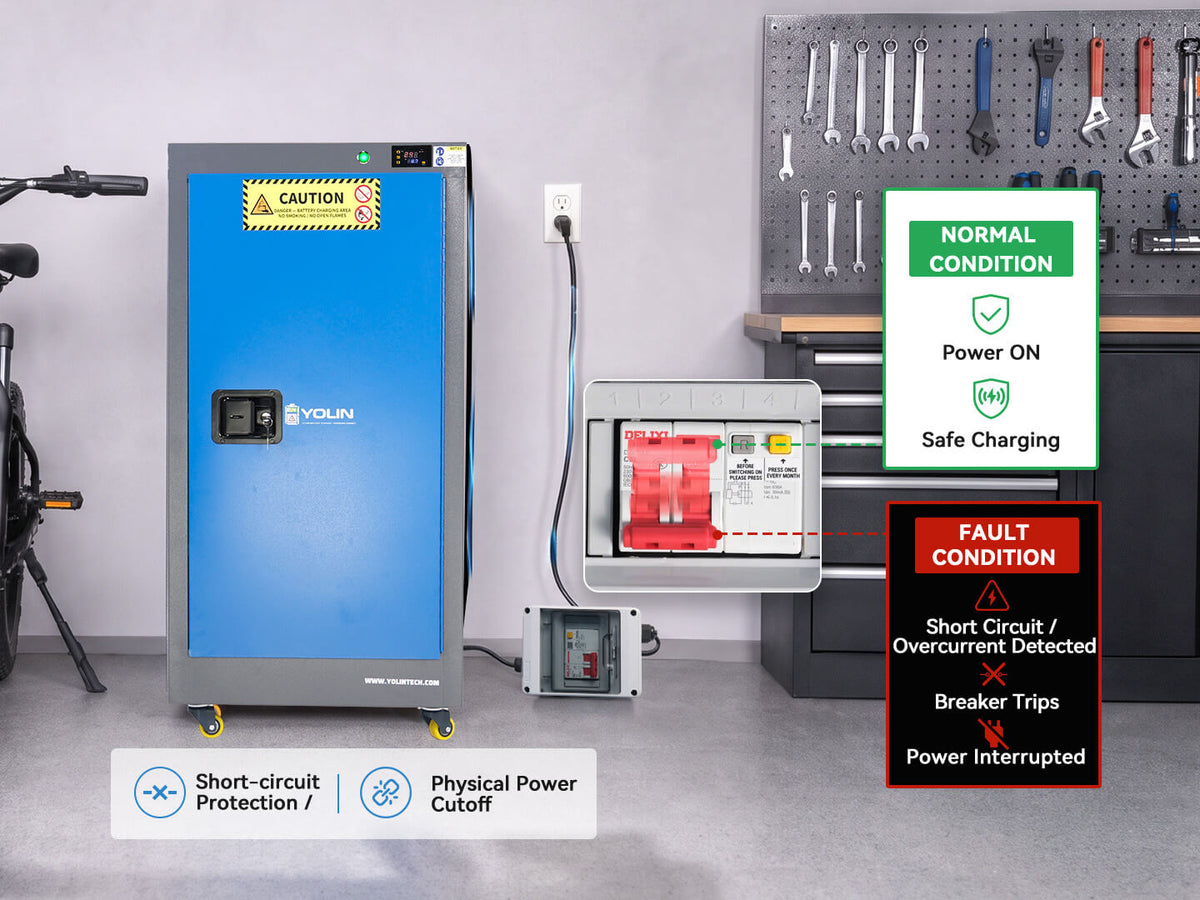

Electrical Fault Protection for High-Load Charging
In workshop and fleet environments, charging problems rarely come from one battery — they come from cumulative electrical load.
The built-in circuit breaker automatically cuts power during faults such as short circuits, leakage, or voltage surges, helping prevent unsafe charging conditions before they escalate across multiple devices.
- Instant auto power cutoff
- Leakage protection
- Designed for frequent, multi-charger use

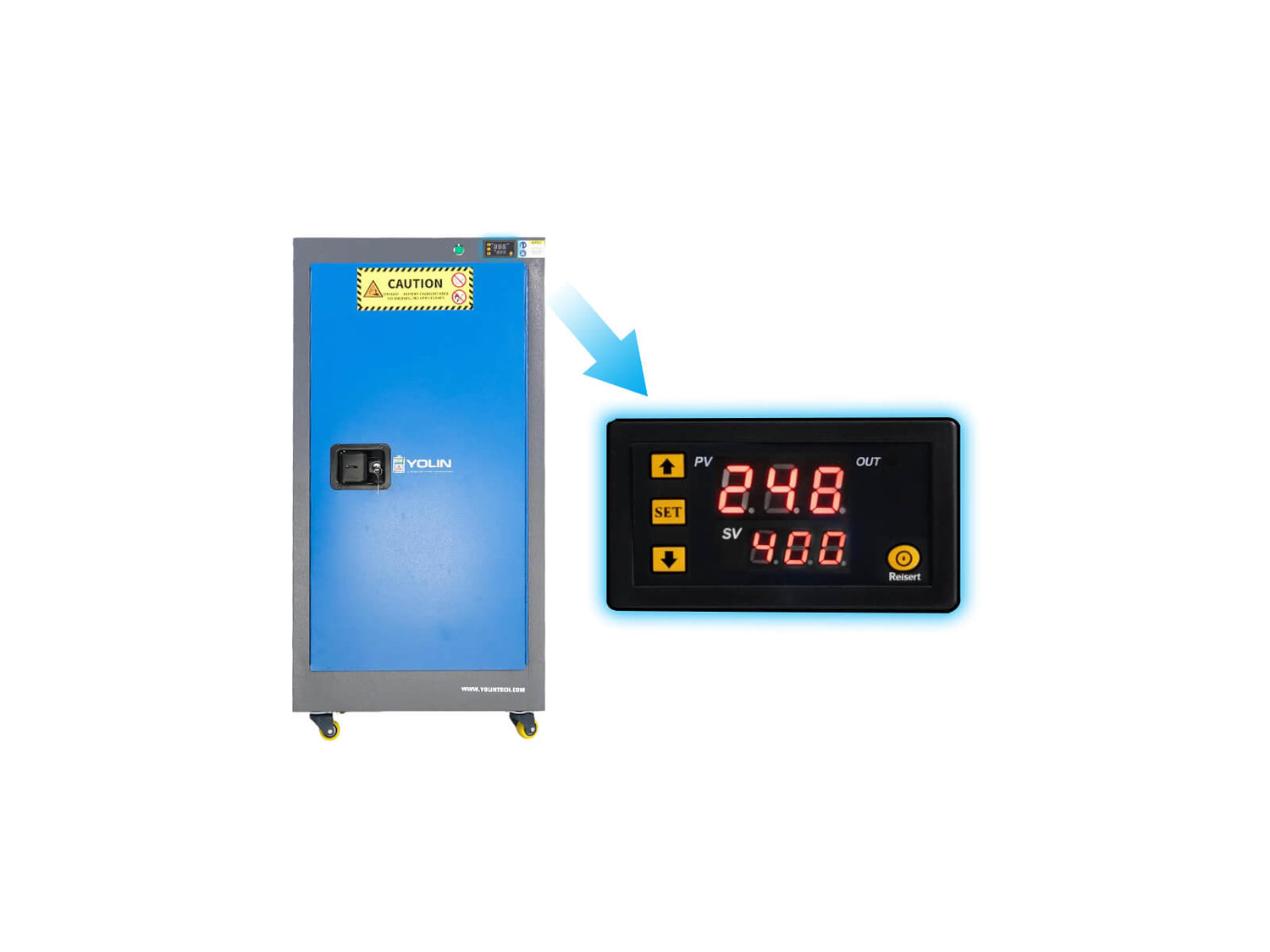

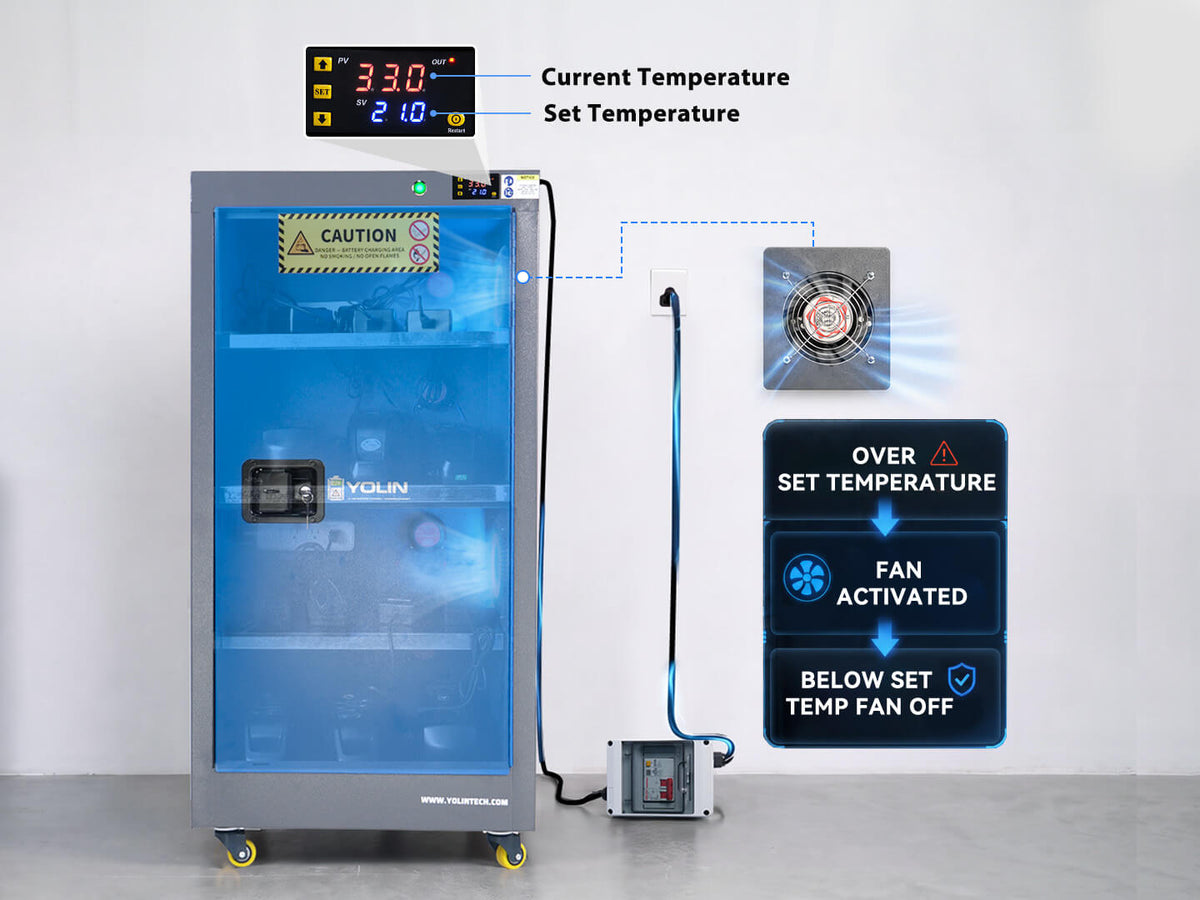

Thermal Stability During Continuous Charging
In workshops and charging rooms, batteries are often charged back-to-back, sometimes for hours at a time.
The intelligent thermostat monitors internal temperature in real time and automatically activates the high-efficiency cooling fan when needed — helping maintain a stable charging environment during extended charging cycles.
- Smart thermal management
- Auto-ventilation under load
- Supports battery longevity during frequent use

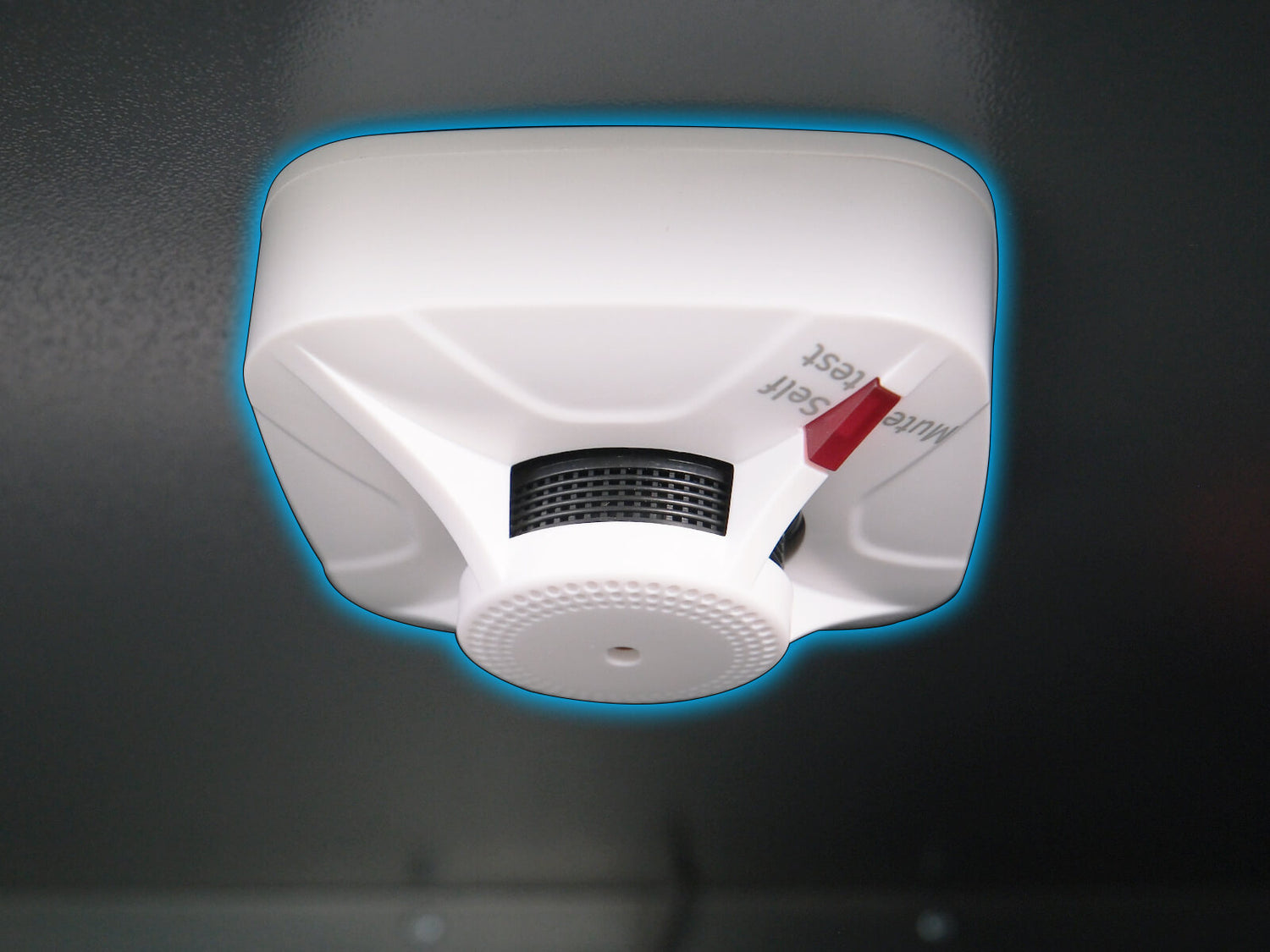

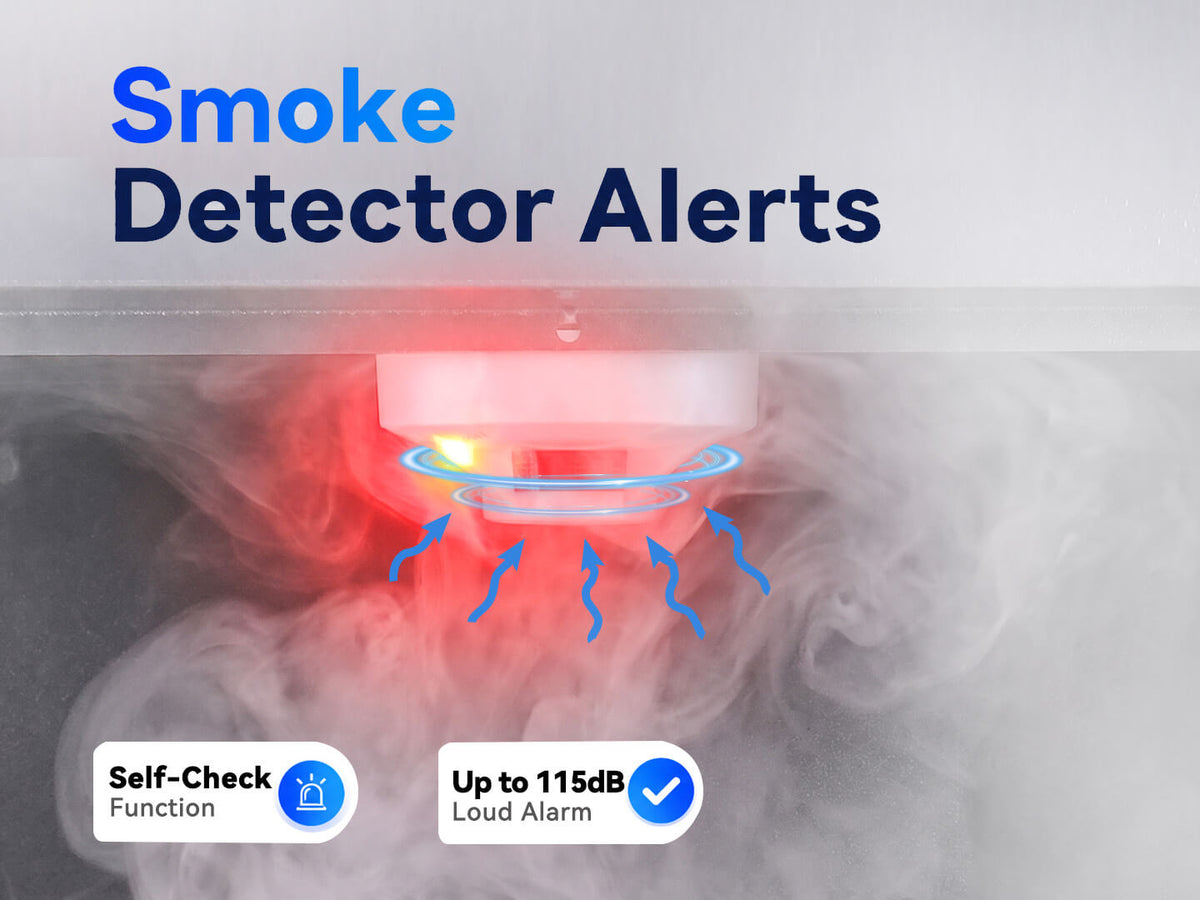

Early Smoke Detection for Faster Response
In professional environments, early warning is not about panic —
it’s about response time.
The high-sensitivity smoke sensor triggers a high-decibel alarm at early stages,
helping staff respond before a localized issue affects surrounding equipment
or workspace safety.
- High-decibel early warning alarm
- Designed for shared and commercial spaces

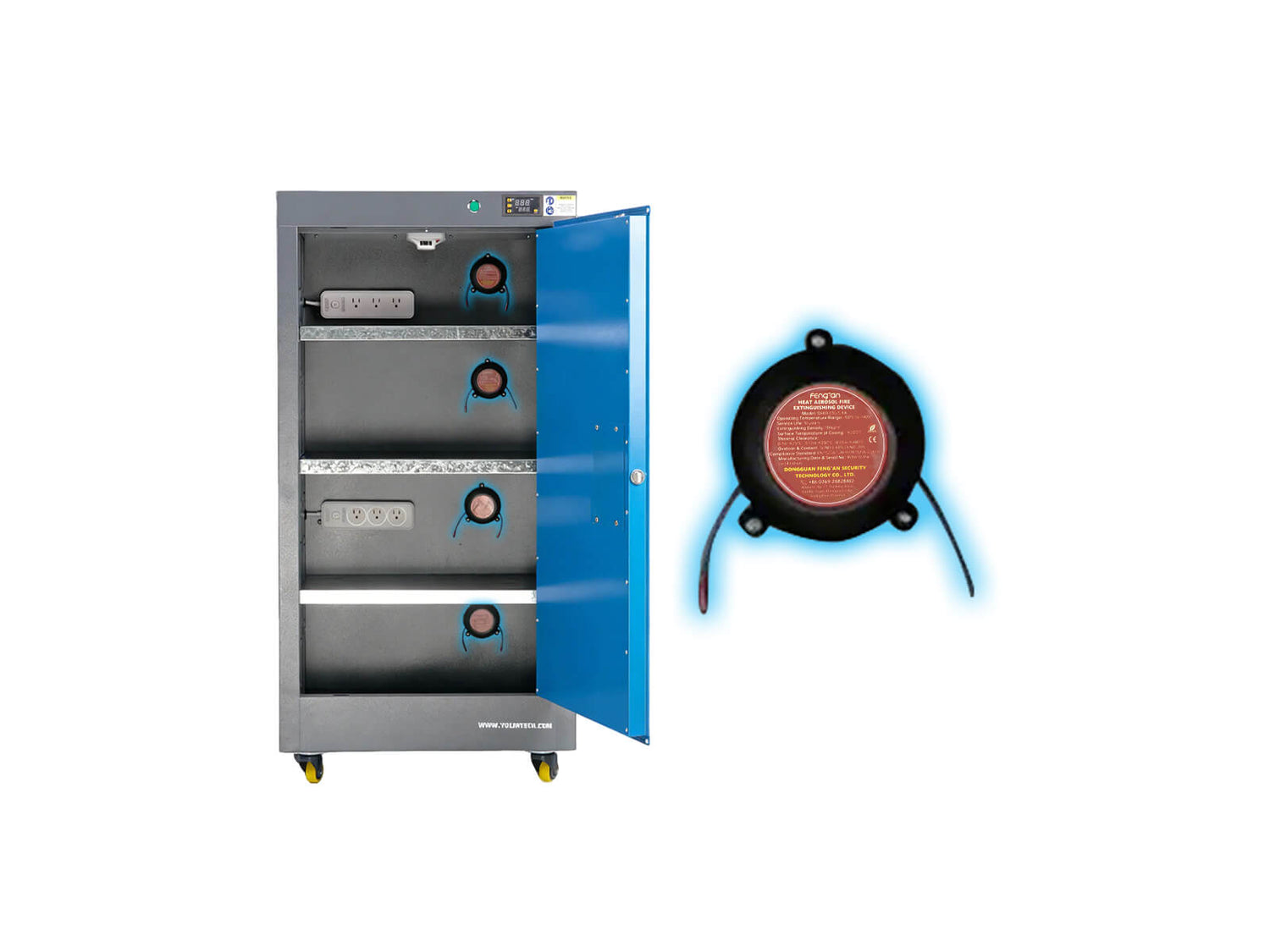

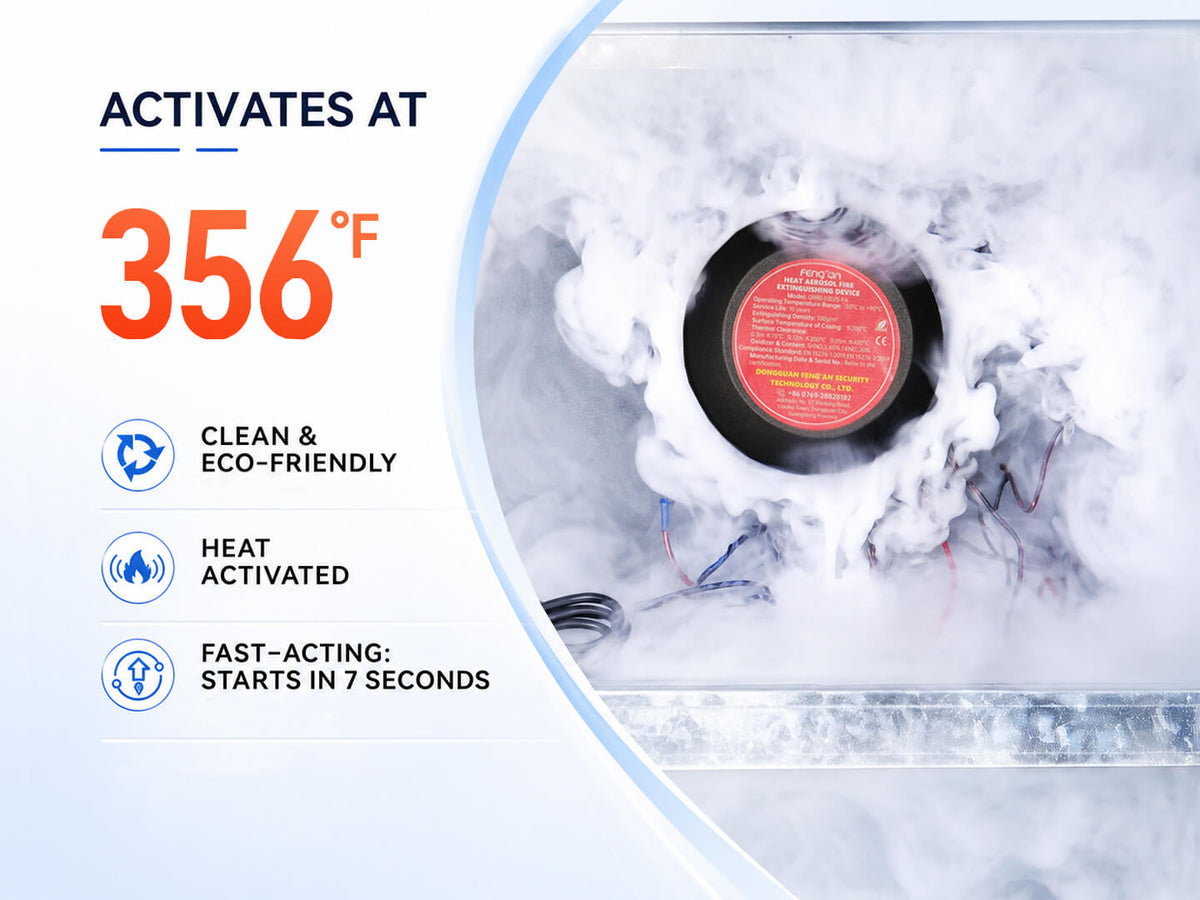

Automatic Suppression Support — Even When Unattended
Charging does not always happen under direct supervision.
The heat-triggered aerosol suppression unit activates automatically during abnormal heat or flame conditions, releasing a non-toxic agent designed to help control battery fire conditions without disrupting the entire workspace.
- Automatic activation
- Residue-free response
- Added protection during unattended charging periods
Features
-

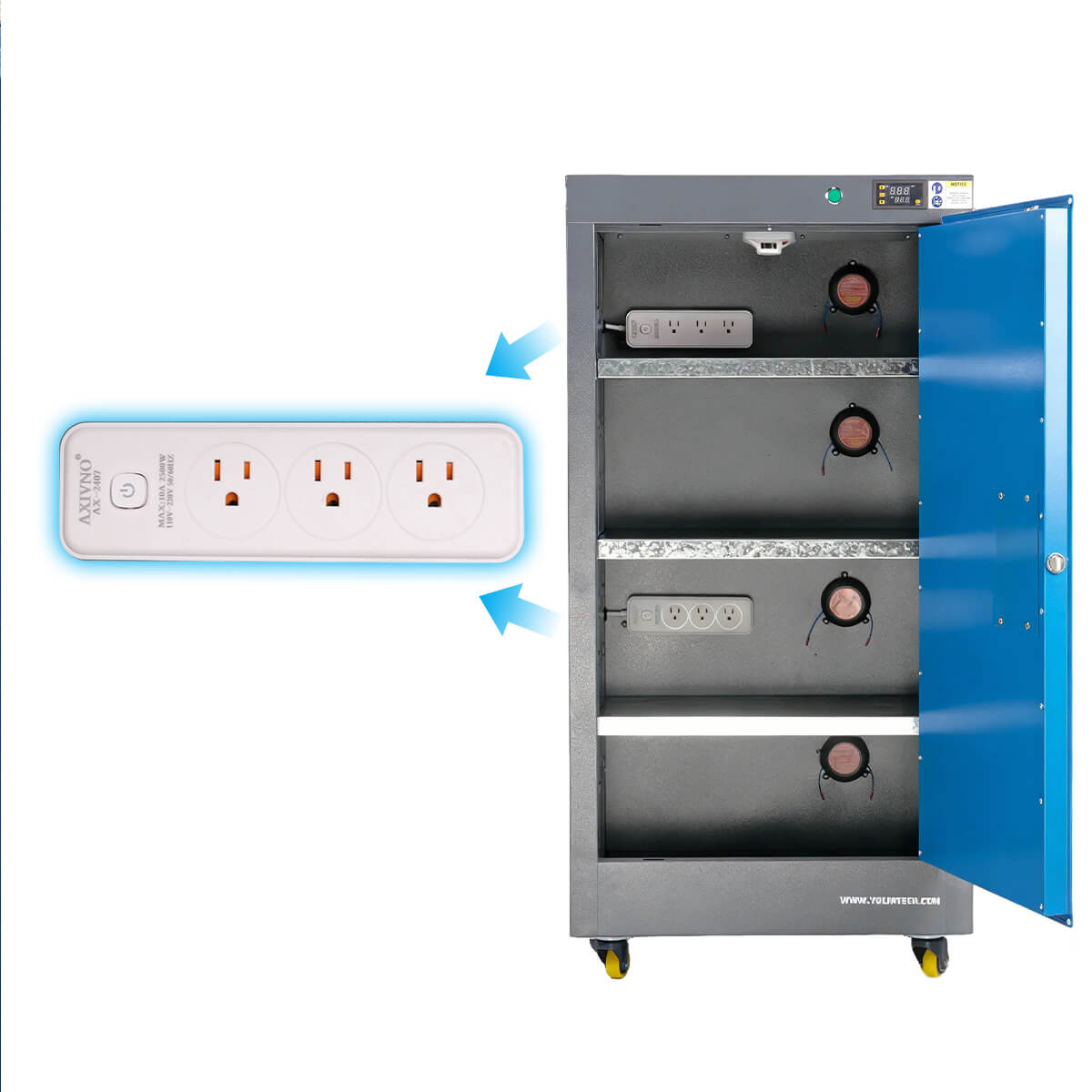

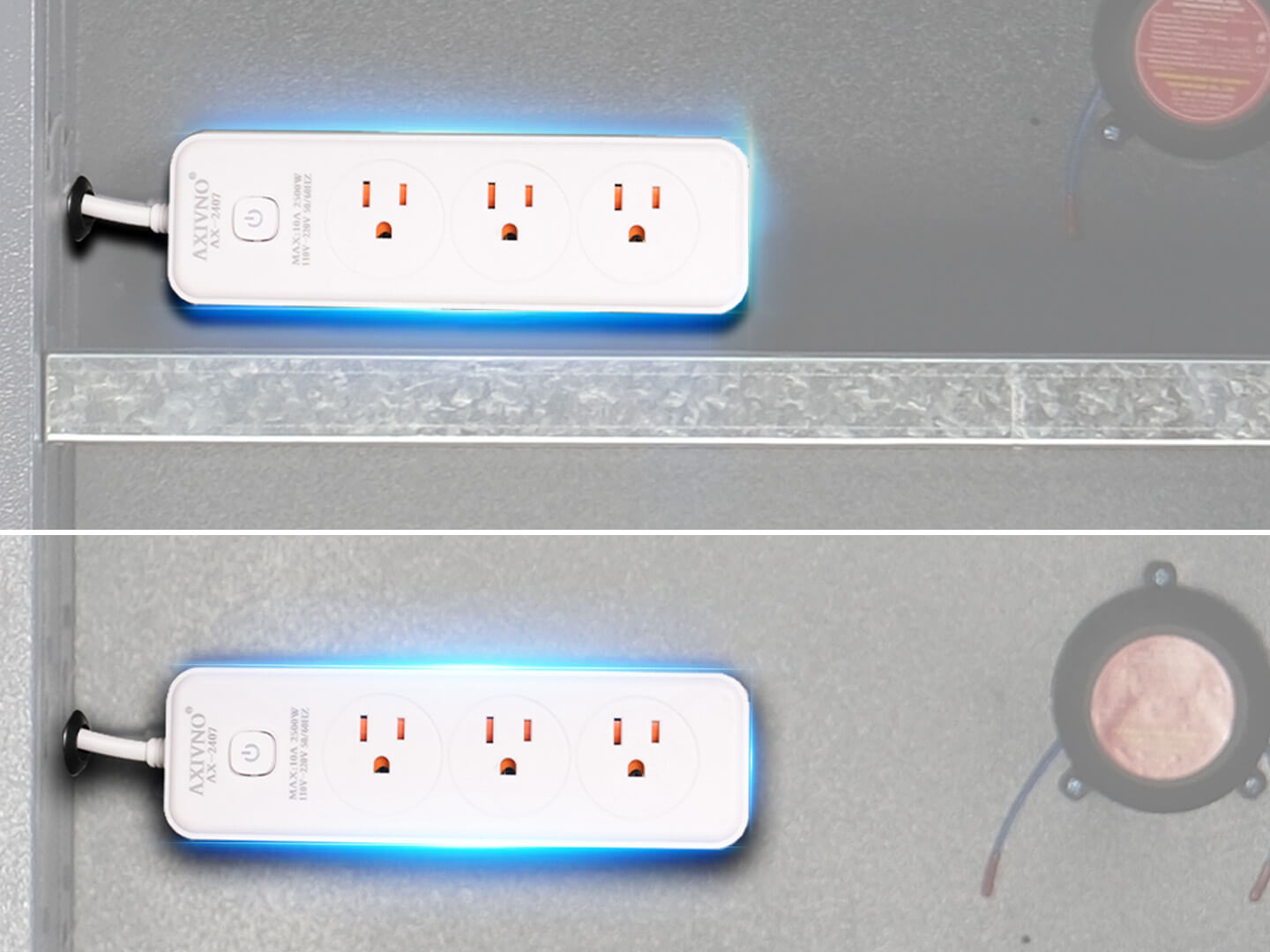

Integrated Power Distribution for Predictable Workflows
Workshops and fleet facilities rely on predictable power access — not temporary extensions or improvised outlets.
The built-in 3-outlet power strip provides a centralized charging interface with overload
and over-voltage protection, helping create a more organized and repeatable charging workflow. -

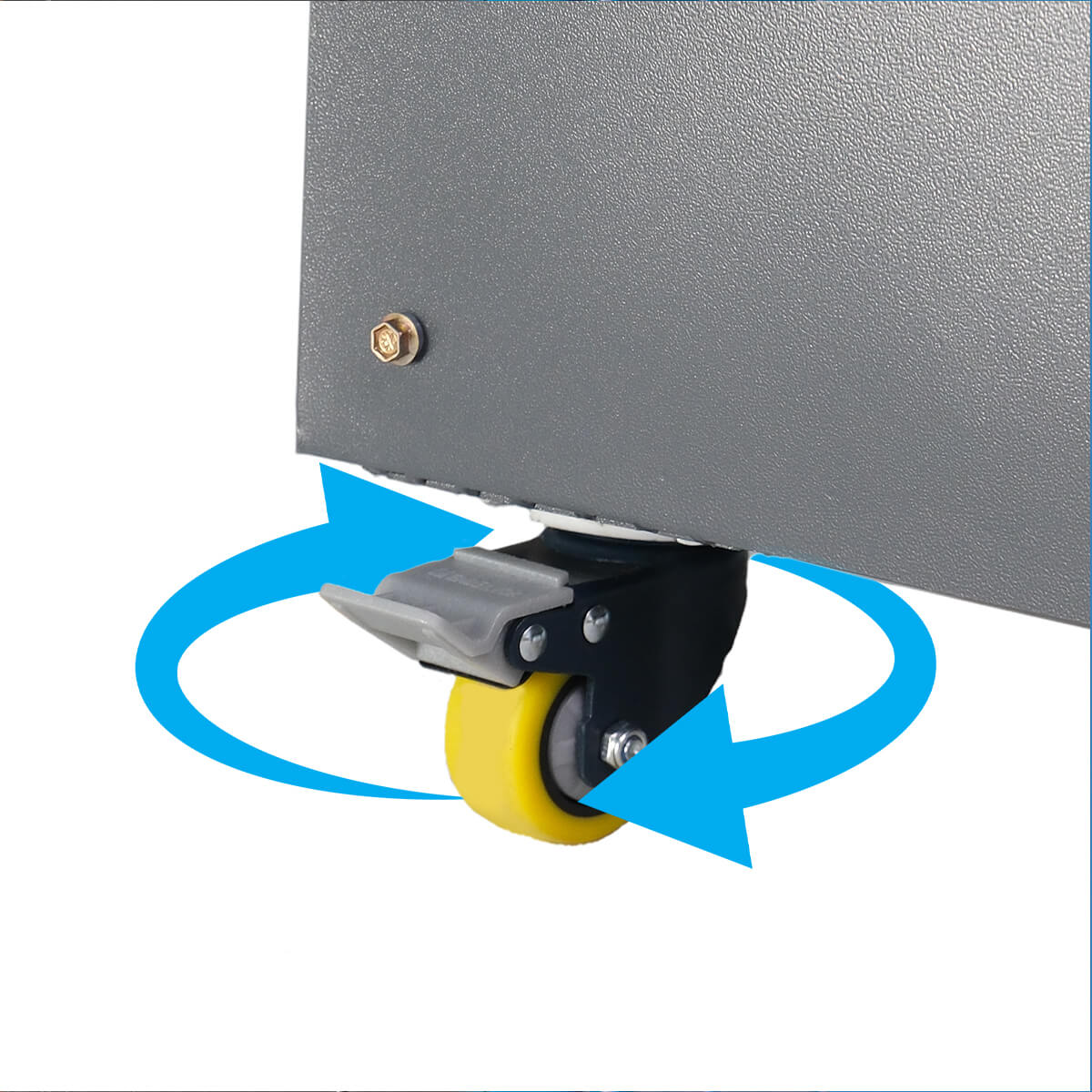

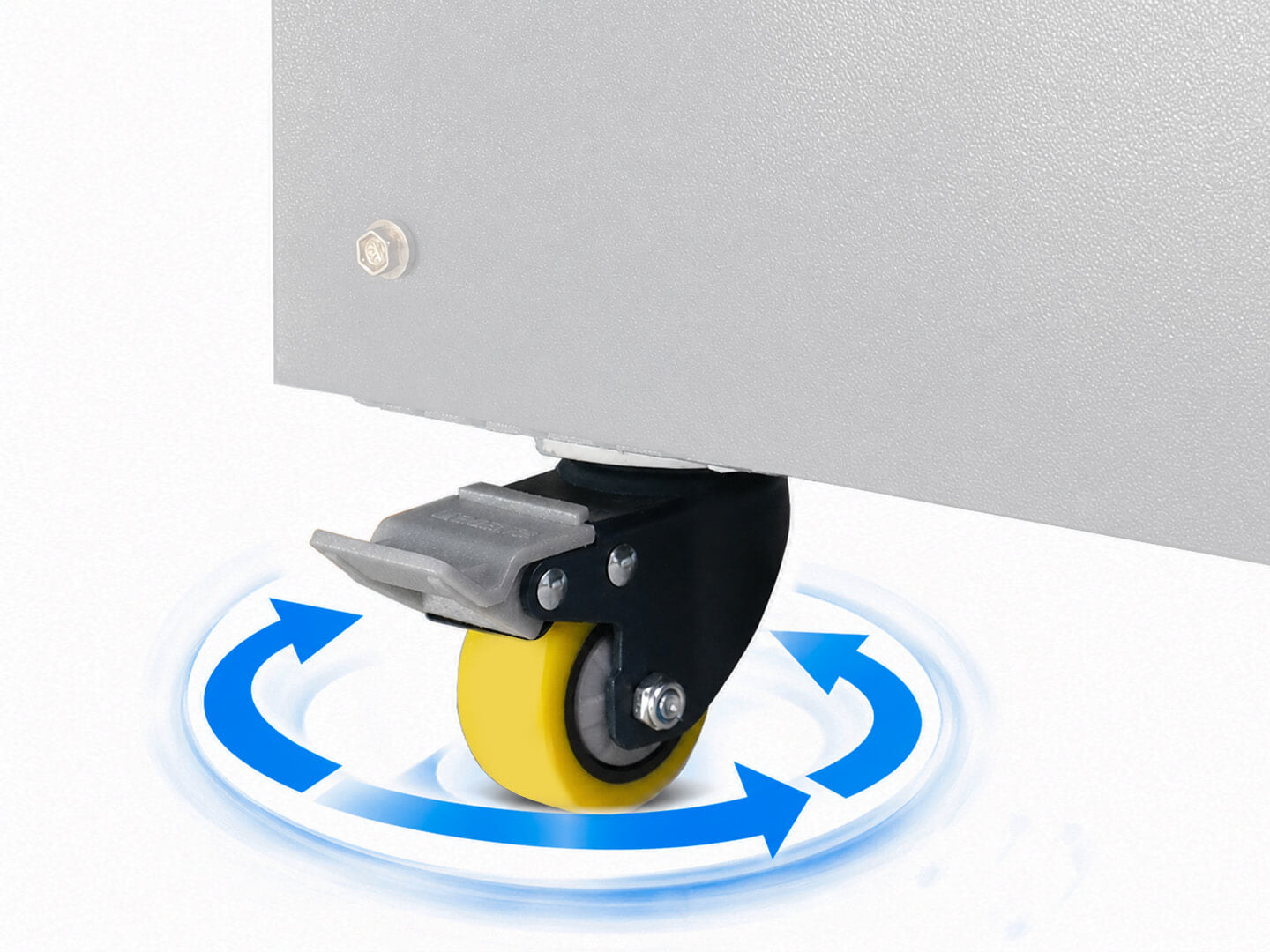

Heavy-Duty Casters for Flexible Workshop Layouts
Workshop layouts change — equipment moves, workflows evolve, and space is reconfigured.
Heavy-duty 360° lockable casters allow the cabinet to be repositioned as needed,
then secured in place during operation, supporting flexible yet controlled space planning. -

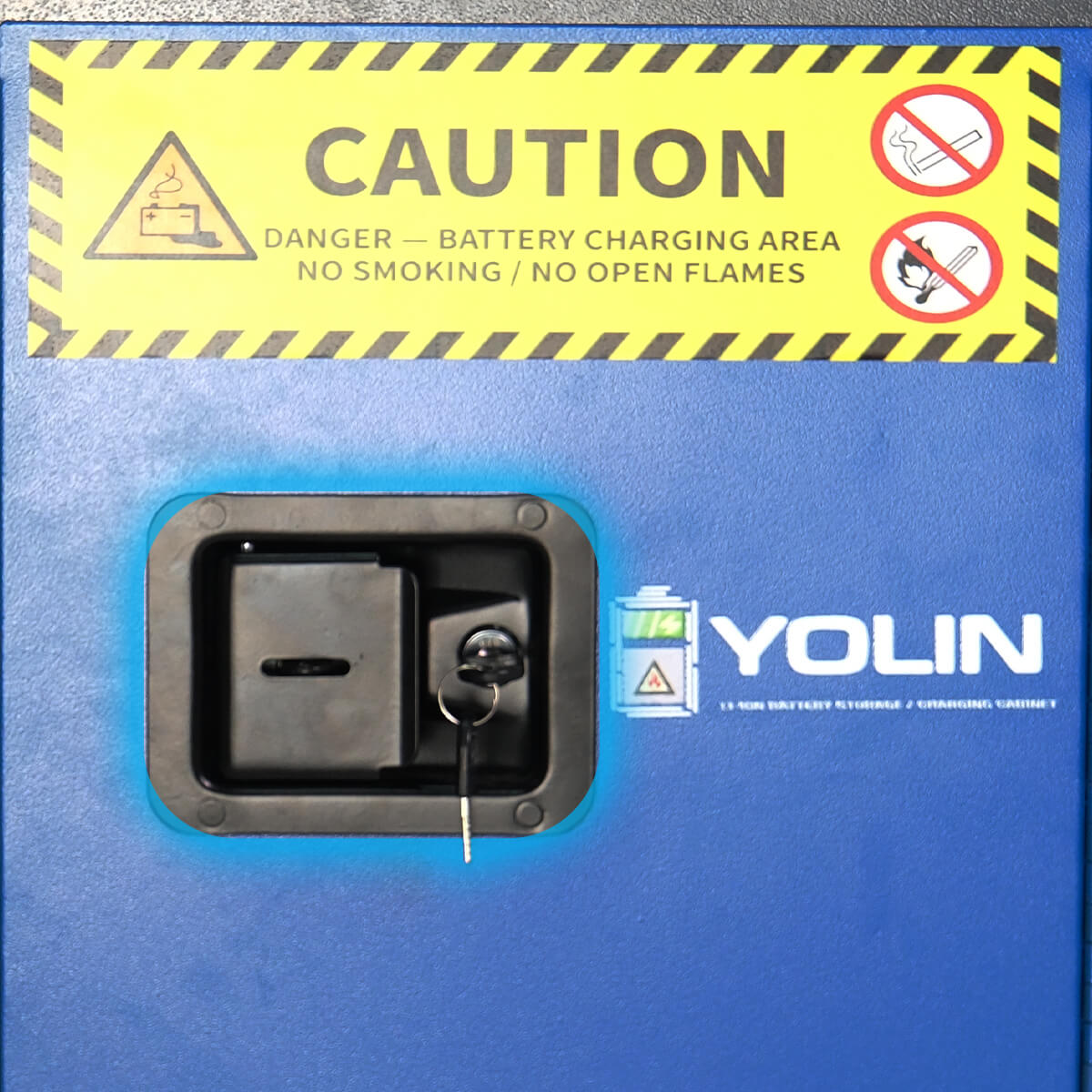

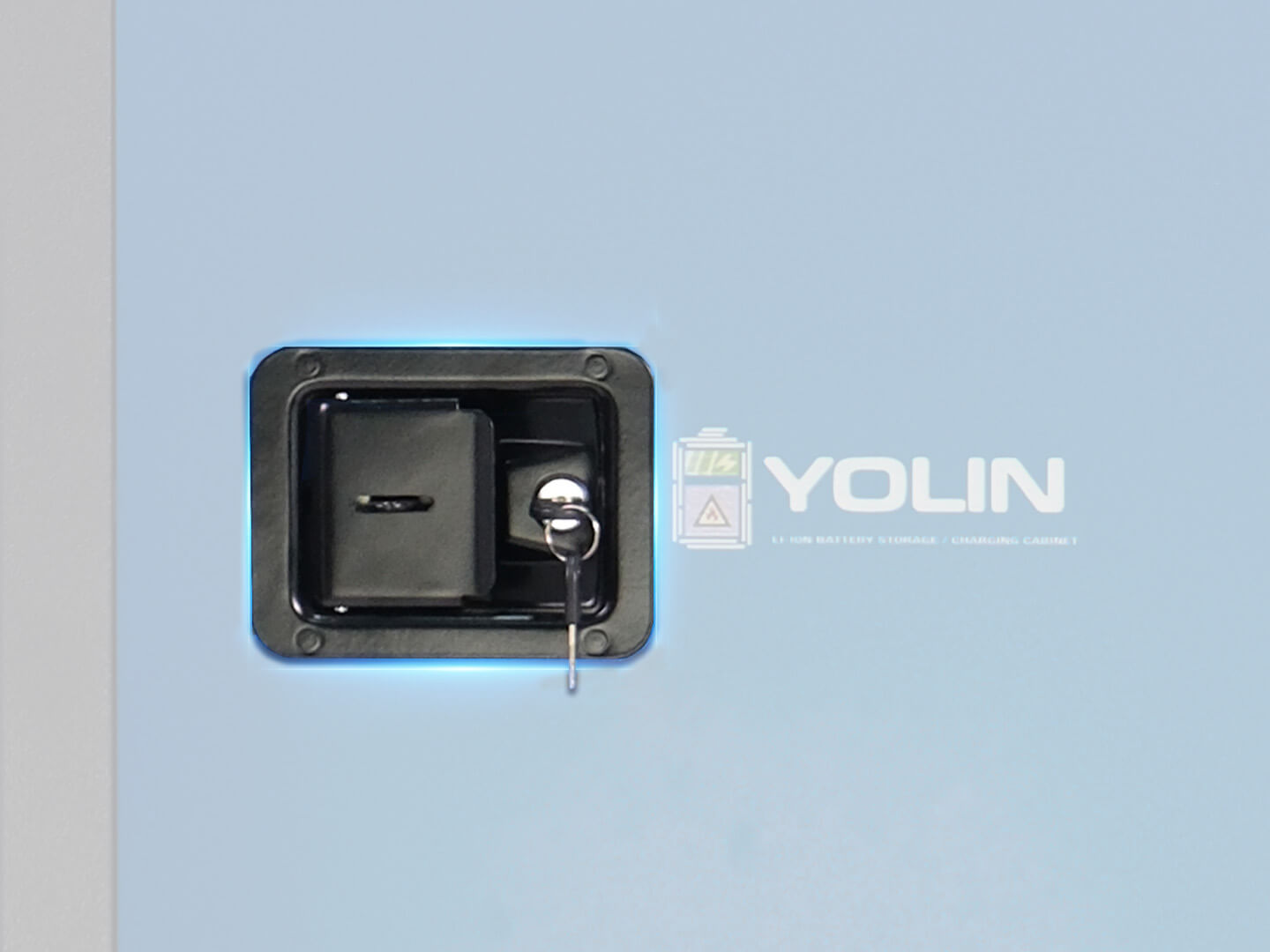

Controlled Access Through Dual-Lock Security
Shared charging spaces require clear boundaries — not open access.
The dual-lock security design combines key and padlock mechanisms to help restrict unauthorized access, supporting safer battery management in workshops, fleets, and shared facilities. -

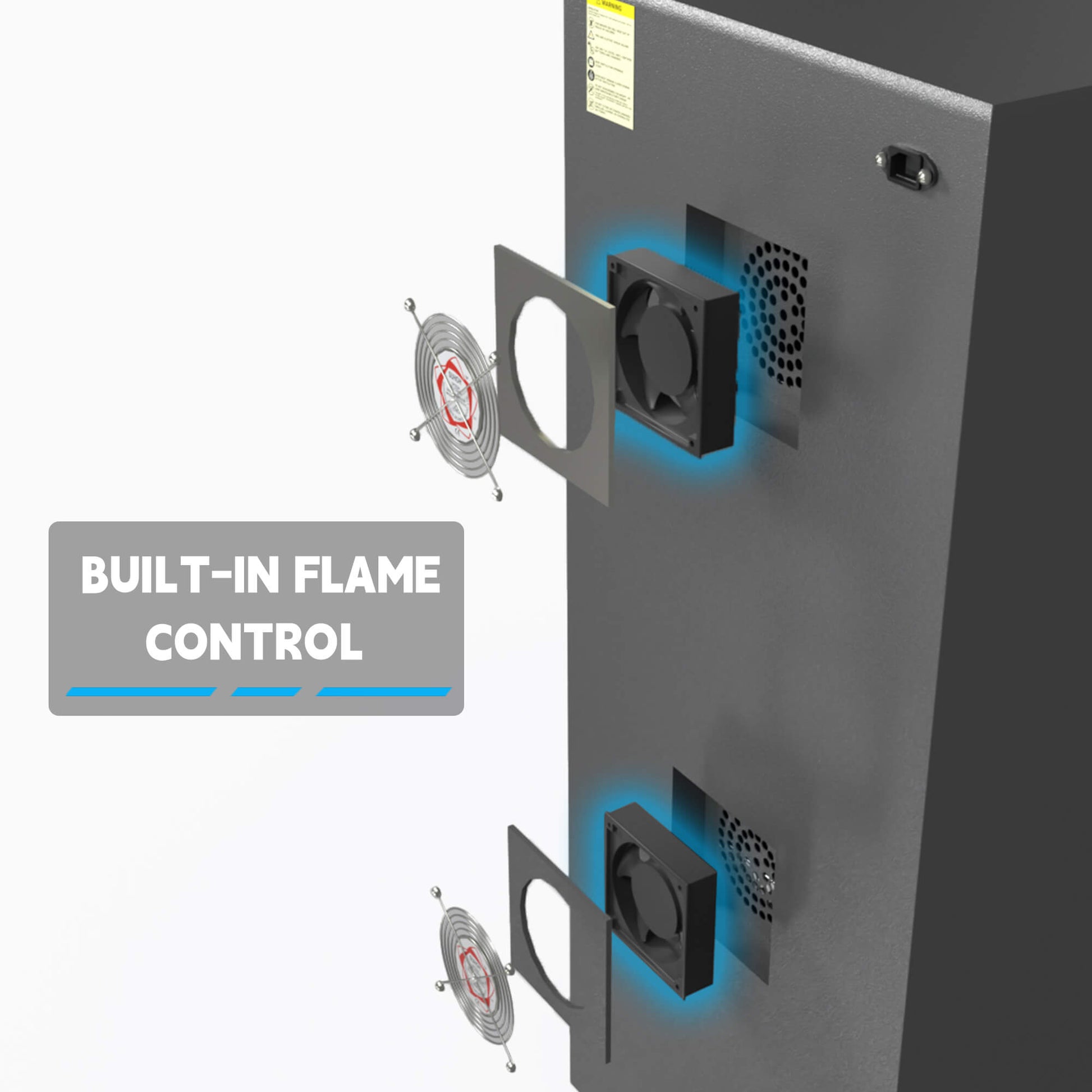

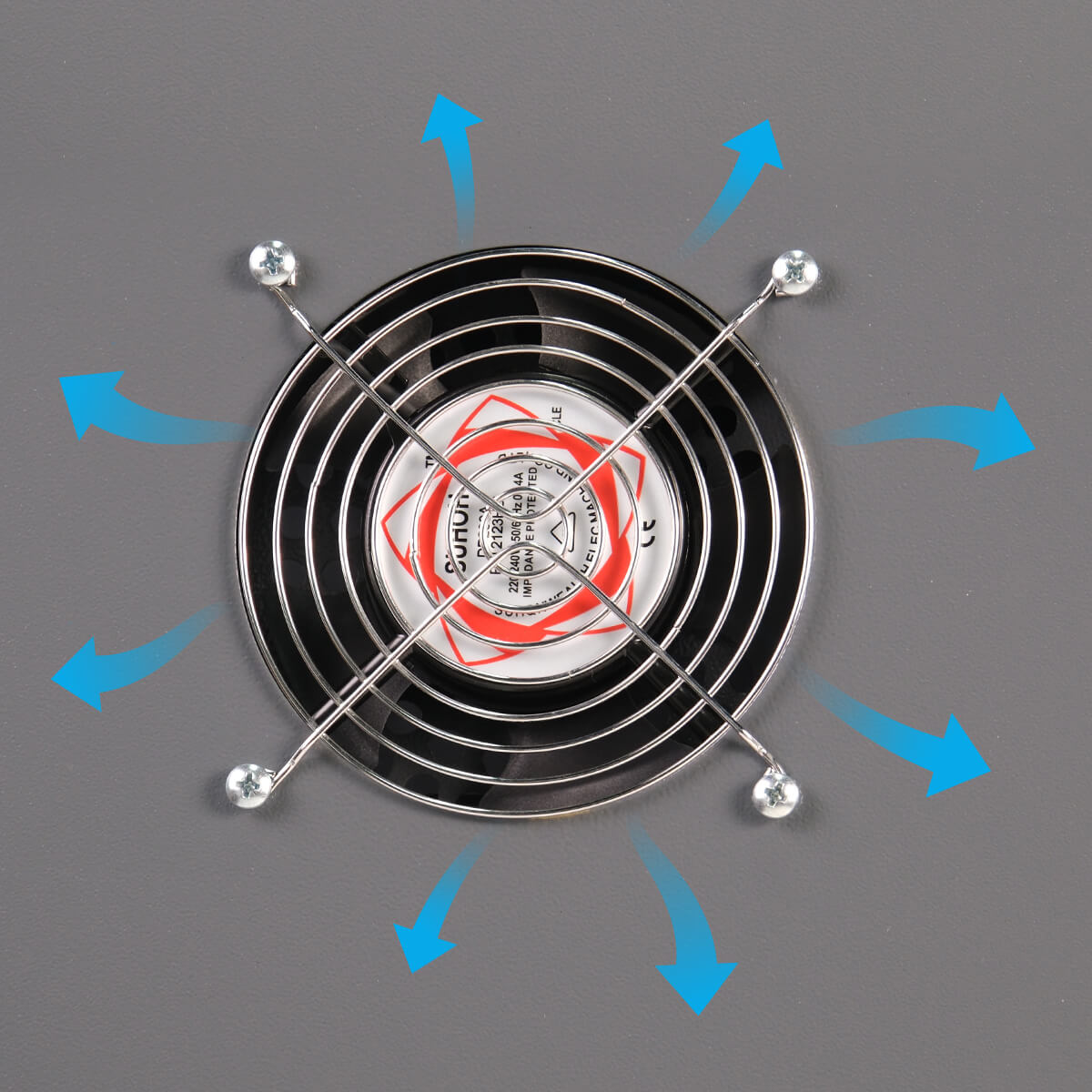

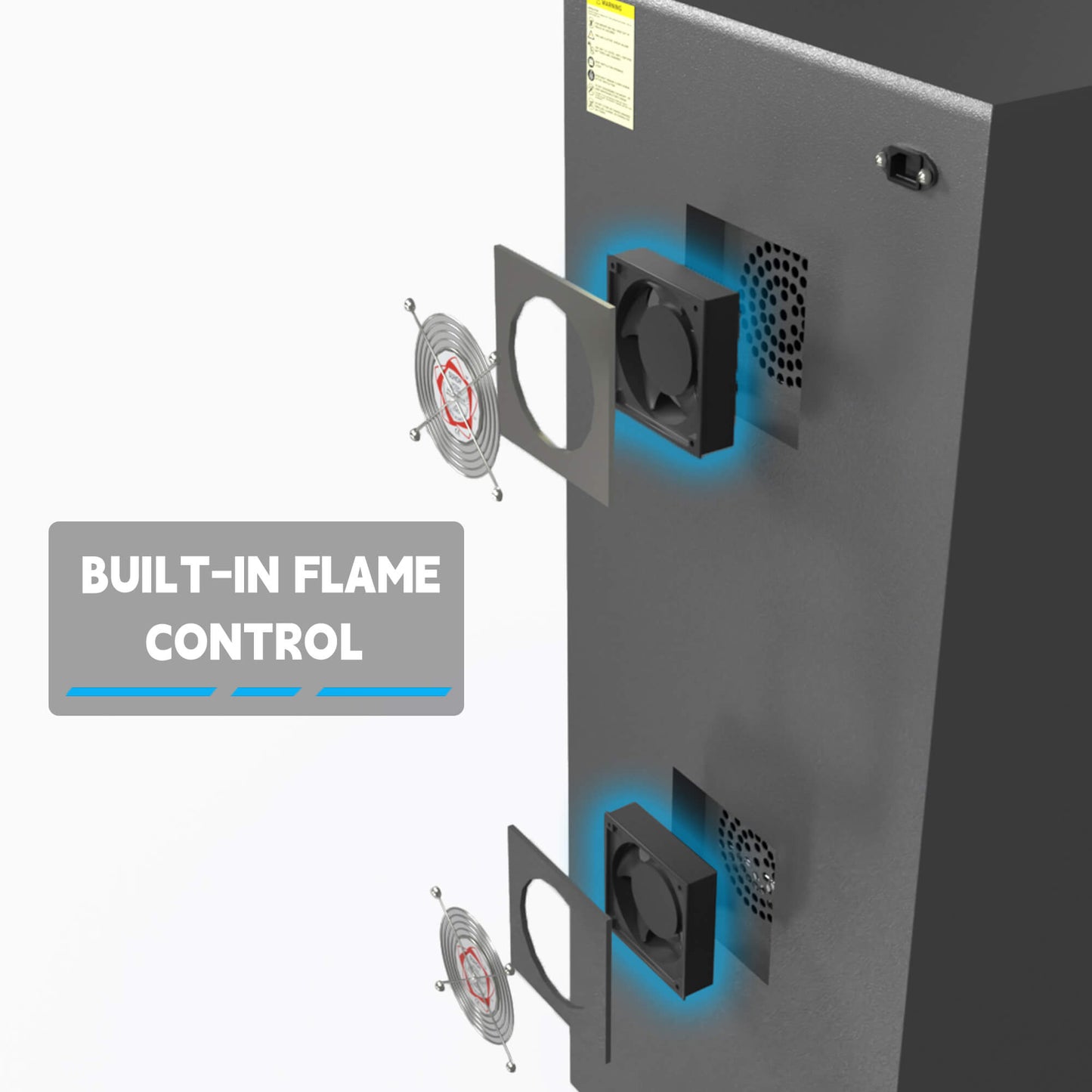

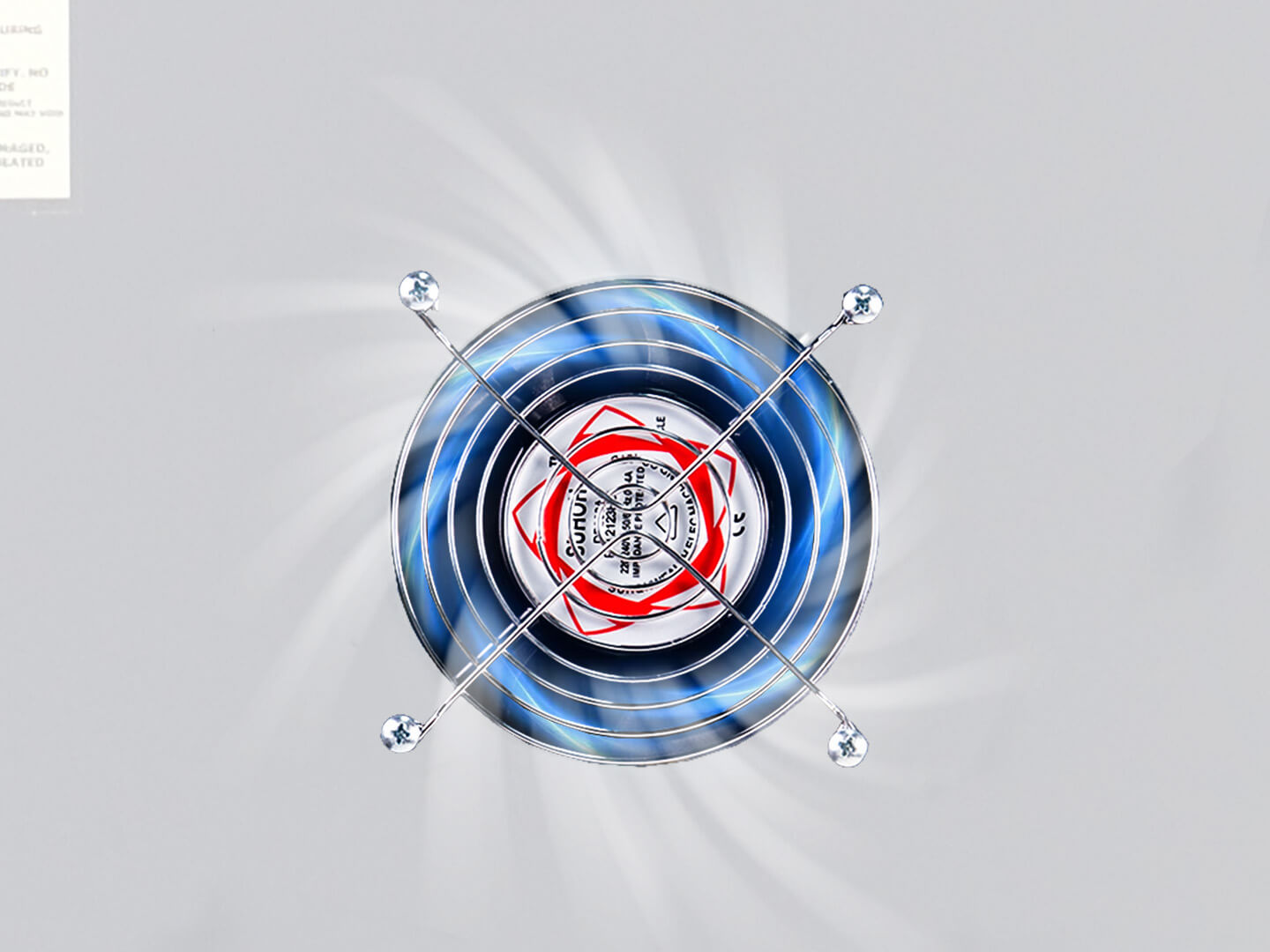

Active Cooling Designed for Continuous Operation
Unlike occasional home charging, workshop charging often involves extended sessions and continuous operation.
The high-efficiency cooling fan is designed to provide active heat dissipation during
long charging cycles, helping maintain a more stable internal environment
under sustained electrical load. -

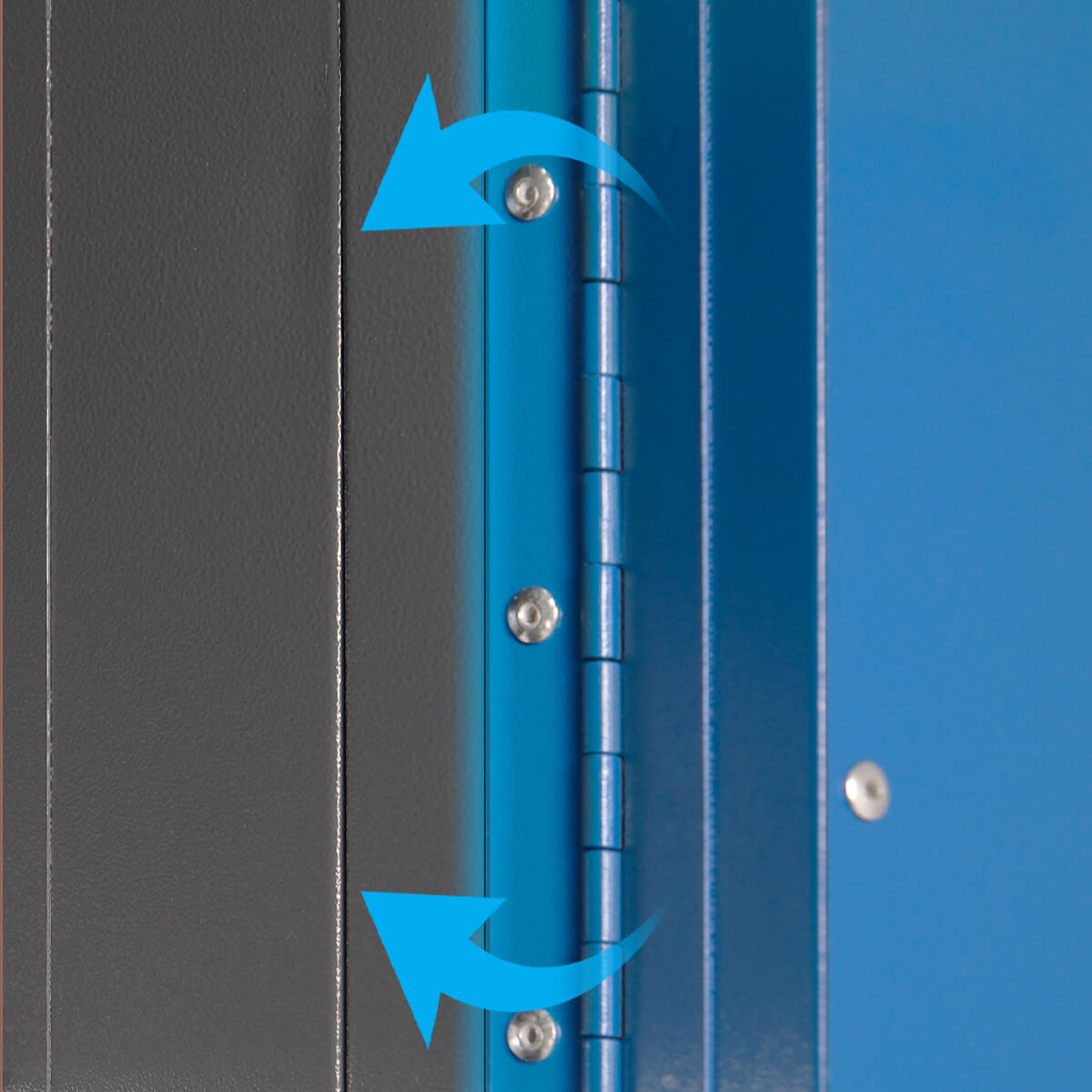

Full-Length Hinges for Frequent Handling Cycles
In professional environments, doors are opened and closed repeatedly throughout the day.
The full-length piano hinge design supports smooth 180-degree opening,
helping reduce mechanical stress during frequent access to batteries and chargers
in high-use charging areas.

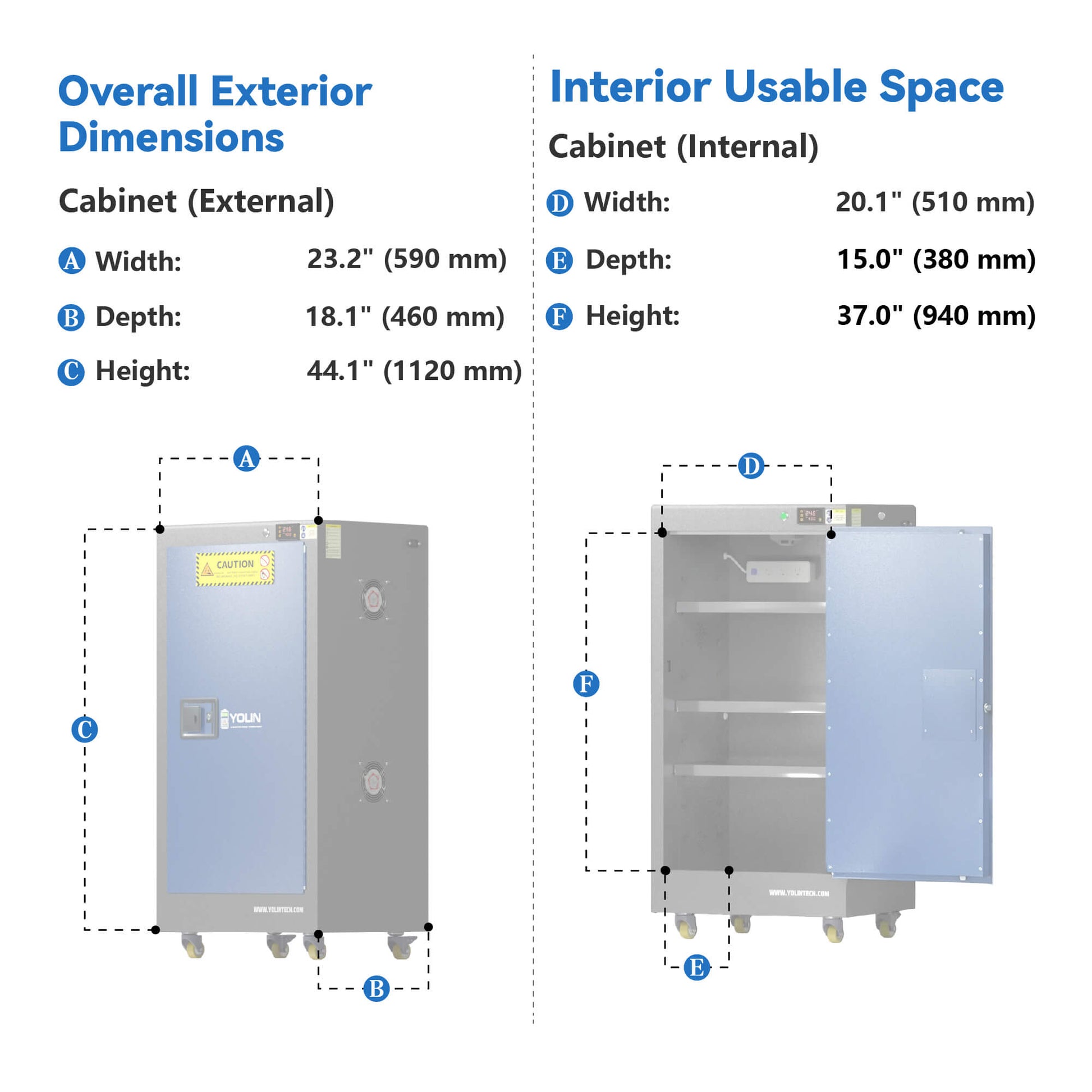

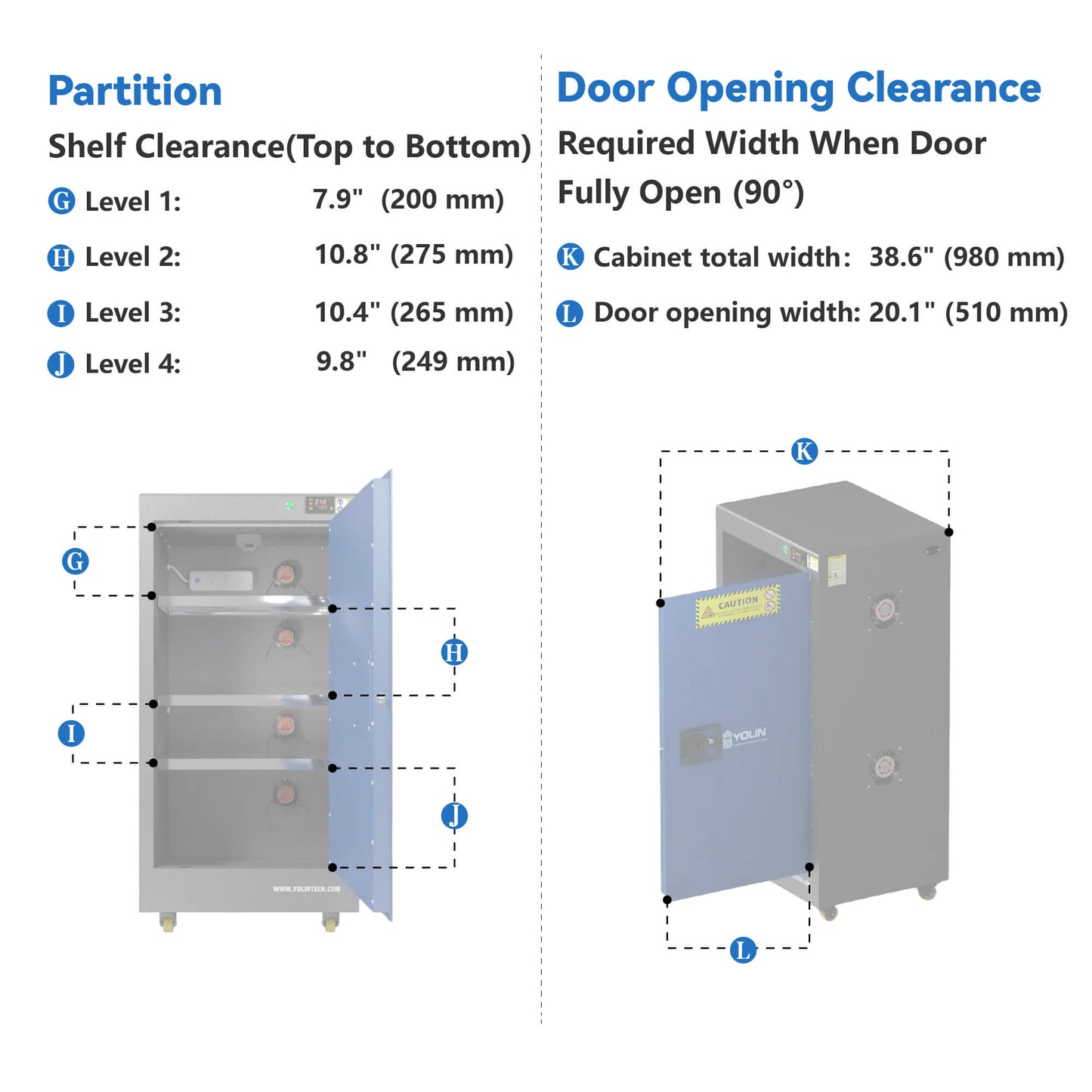

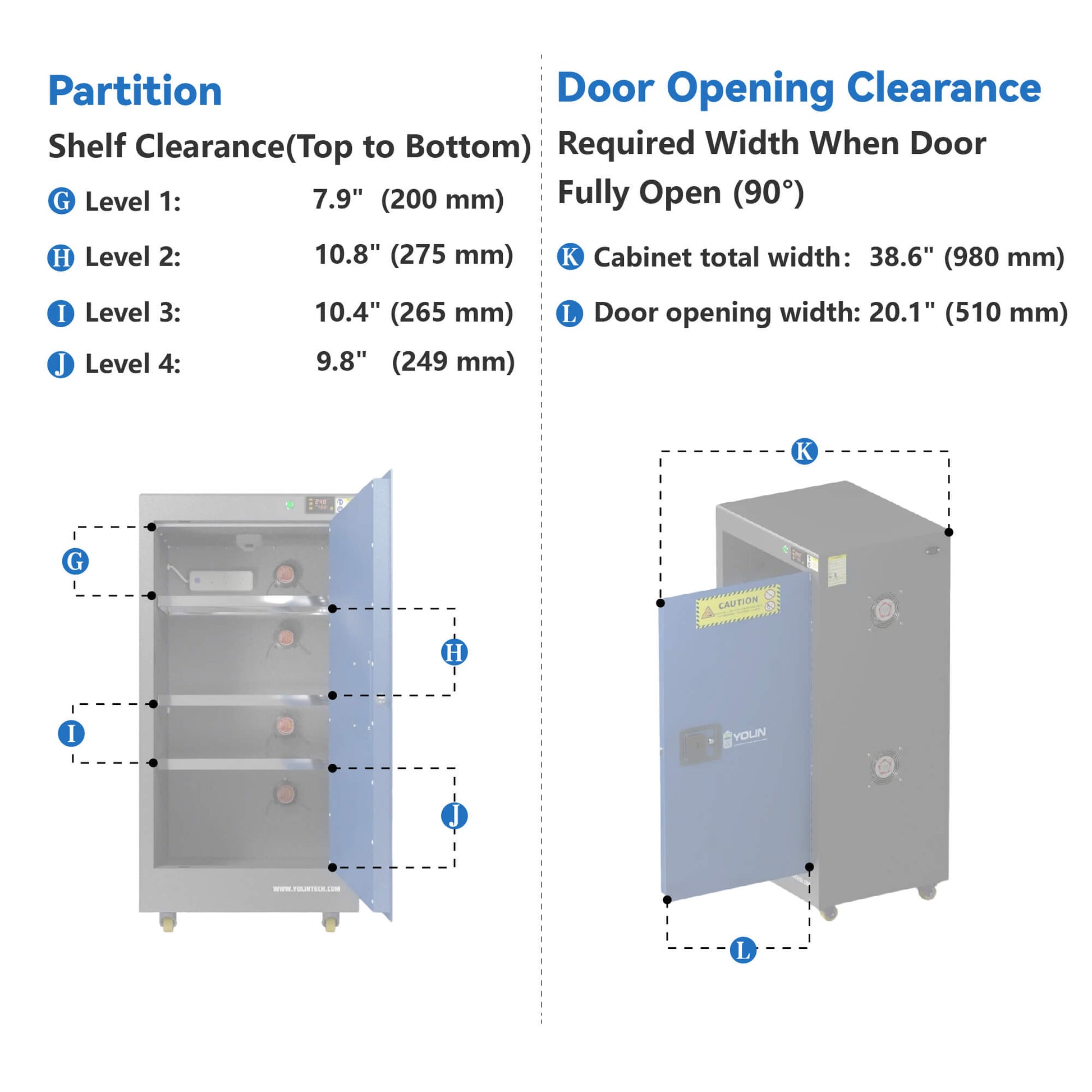

Size & Geometry
All dimensions are shown in inches (W × D × H).

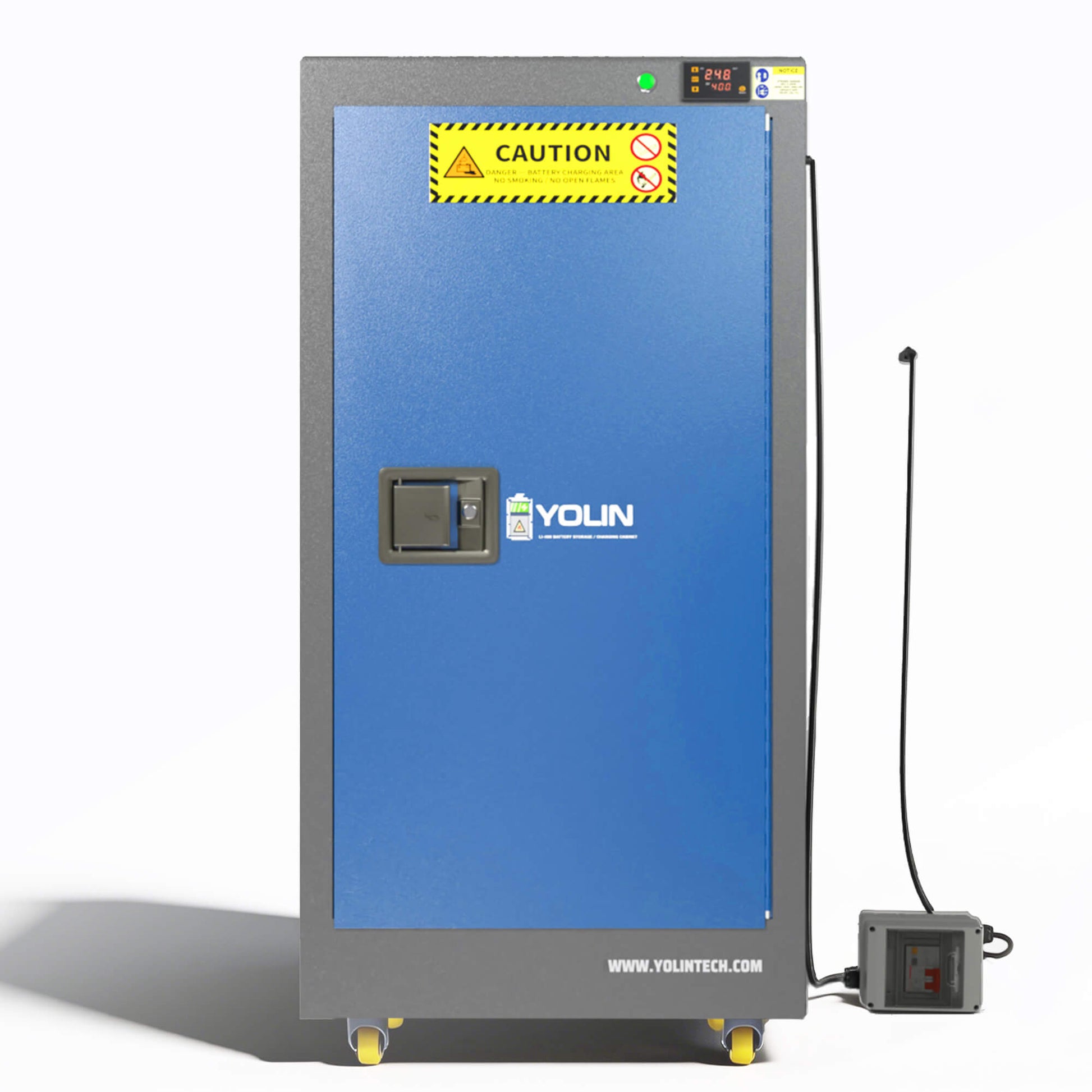

Workshop Model Exterior Dimensions: 23.23" W × 18.11" D × 44.09" H
Workshop Model Interior Usable Dimensions: 20.08" W × 14.96" D × 37.01" H
Shipping Dimensions: 25.59" W × 20.47" D × 46.06" H
Net / Gross Weight: 92.6 lbs (42 kg) / 103.6 lbs (47 kg)
Shelf Payload: 66.13 lbs (30 kg)
Total Payload: 286.60 lbs (130 kg)
Specifications & User Manuals
Use the links below to download resources for the Yolin lithium-ion battery charging cabinets, including Urban and Workshop models.
What's in the Box?
- Battery charging cabinet
- Power Cord with Integrated GFCI
- Smoke Alarm(Batteries Included)
- Grounding Wire
- Keys
- Casters
The e-bike batteries and chargers shown in the images are for illustration purposes only and are not included.
Need a Custom Configuration?
Yolin supports project-based cabinet configurations for specialized applications.
If your installation requires modified cabinet dimensions, increased simultaneous charging capacity, additional internal charging outlets, or enhanced safety integration, our engineering team can review your requirements.
Custom configurations are typically suited for fleet, workshop, or commercial installations.
Contact us to discuss your project and required battery charging capacity.
